INTRODUCTION

Use of disc images

Although XEBRA can process physical discs directly, I assume the use of disc images here.

XEBRA supports "DISC" images, not "TRACK" images. Never divide! Never skip the gap! Never skip ECM! If you can not understand, use "CloneCD".

SIMPLE USAGE

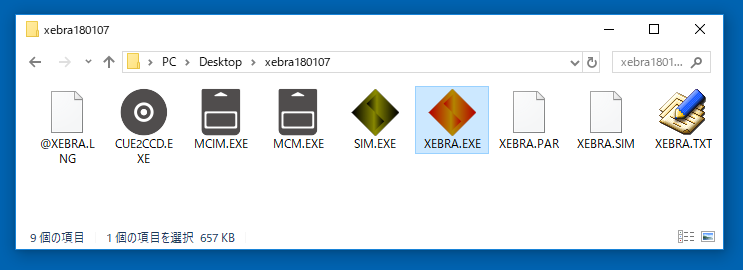

• (1) Start XEBRA.

Double click on XEBRA.EXE.

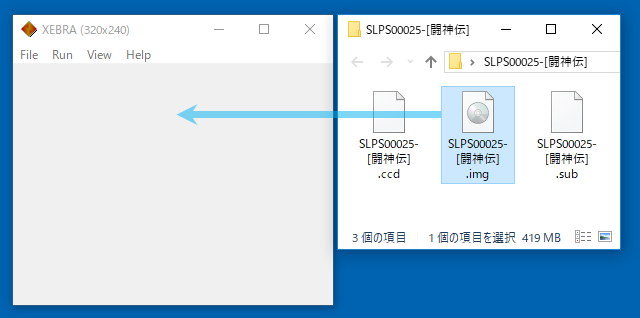

• (2) Drag and drop the CD-ROM image file, and wait.

  Drop the main file (*.img, *.bin, *.iso, ... largest file). Never drop optional files (*.cue, *.ccd, *.sub, ...)!



If you feel it slow, blame the reality. That is the original speed. If you want to speed up, press F4 to cancel the sync process.

• (3) Push keys.

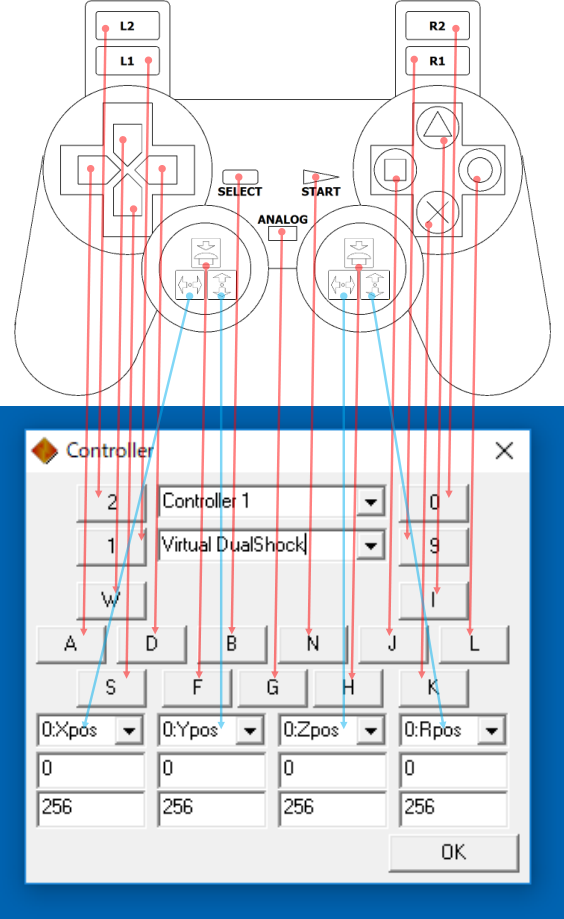

initial layout

OS ROM

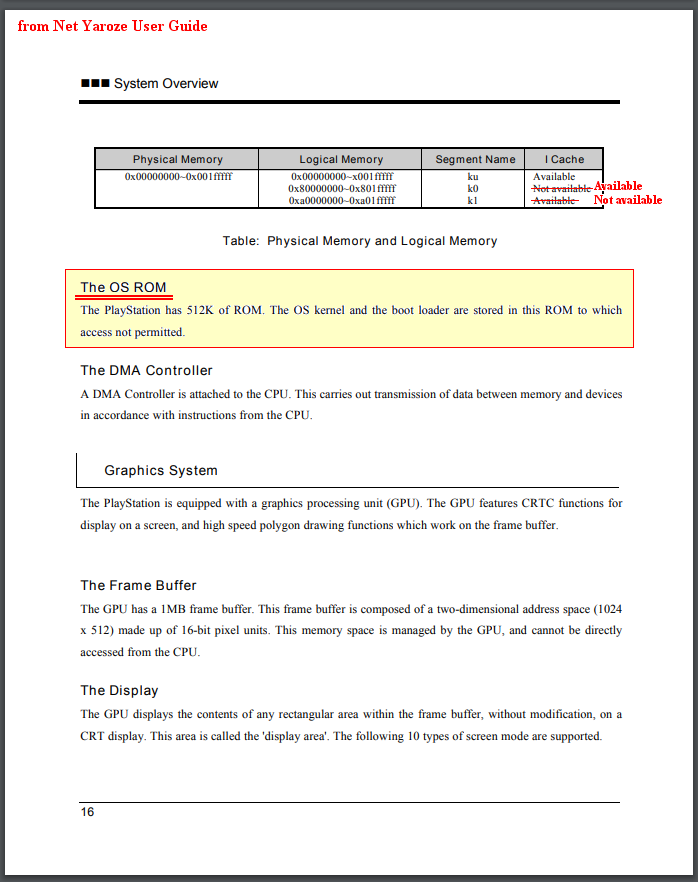

In the document of "Net Yaroze!", Sony Computer Entertainment Inc. calls the ROM of PS1's firmware "OS ROM". Are you calling PSP's or PS3's system software "BIOS"?

XEBRA contains a compatible OS ROM image, but if you already have an official OS ROM image, you should use it. Change the name of it to "OSROM" (no extension), and move it to XEBRA's folder before starting XEBRA.

CONTROLLER SETTINGS

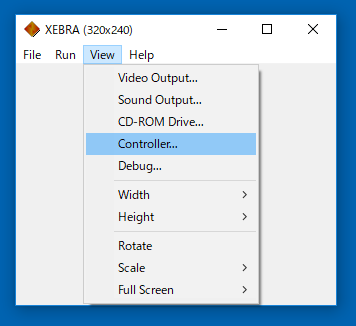

• (1) Click the menu "View / Controller...".

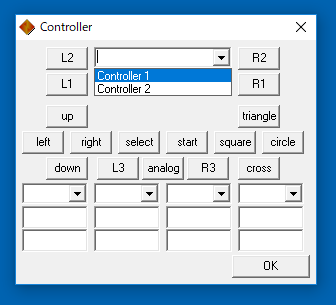

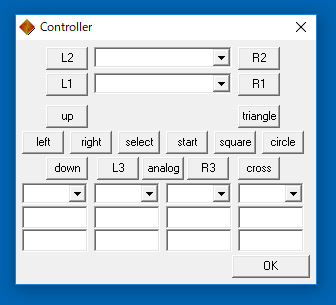

• (2) Select the port of PS1's controller.

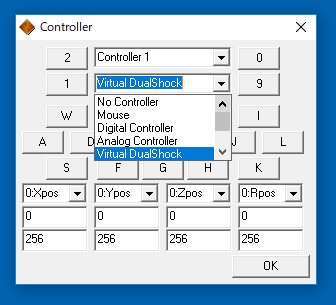

• (3) Select the controller type of PS1.



• (4) Press the button to change the association.

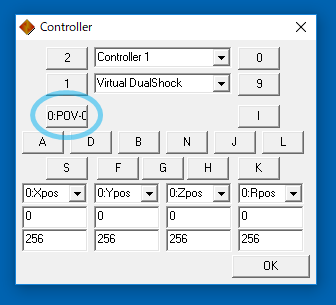

• (5) Press the PC controller button.



• (6) Repeat (4) to (5).

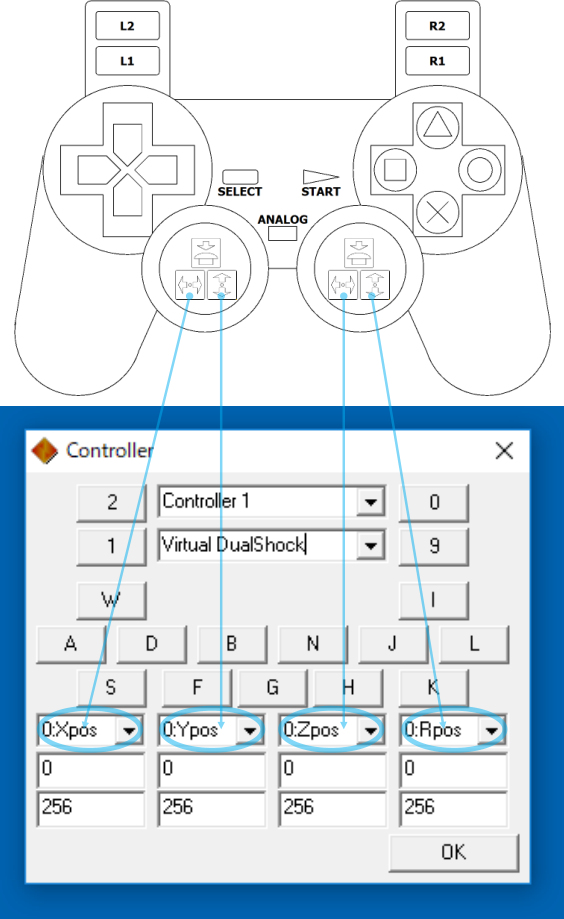

• (7) Select the PC controller axis.

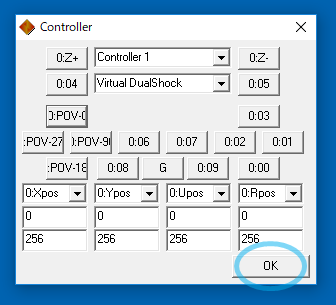

• (8) Press "OK" button.

DISC EXCHANGE

Never exchange the disc while the game is paused. Please exchange it while the game is running. Do you want to teleport the disc?

• (1) Click the menu "Run / Open Shell".

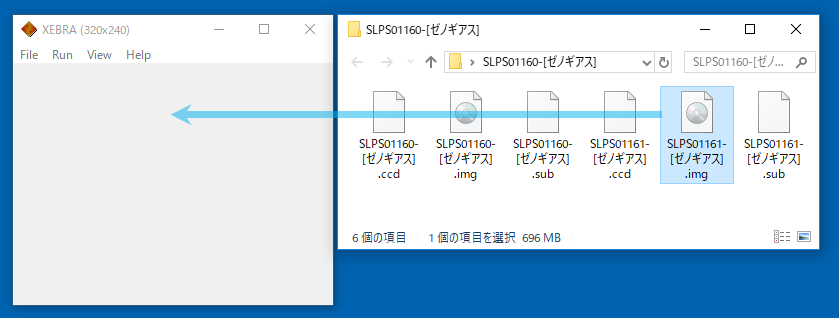

• (2) Drag and drop the CD-ROM image file.

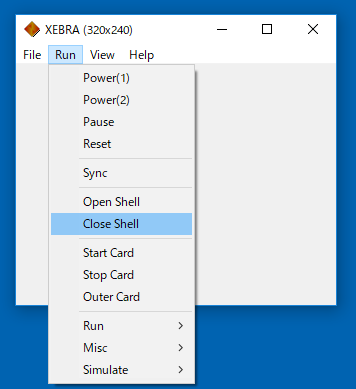

• (3) Click the menu "Run / Close Shell".

INDIVIDUAL CHEAT CODES

If the name of the game disc image is "C:/PSXISO/Ridge Racer.img", create a text file named "C:/PSXISO/Ridge Racer.ar" and enter the cheat code.

INDIVIDUAL SIMULATION SETTINGS

If the name of the game disc image is "C:/PSXISO/Ridge Racer.img", save the simulation image file as "C:/PSXISO/Ridge Racer.sim".

INDIVIDUAL INITIAL SETTINGS

If the name of the game disc image is "C:/PSXISO/Ridge Racer.img", rename "XEBRA.ini" to "C:/PSXISO/Ridge Racer.ini".

LOCALIZATION

Edit "XEBRA.LNG" file and move it to XEBRA's folder.

SIMULATION SETTINGS

I have never seen a game that can not avoid freezes by adjusting the simulation settings. But that can not be handled with a bad head. There is no almighty setting. The most effective parameter in my experience is "I Cache Rate". It is too late to change it after freezing. Please change it before freezing.

HIGH RESOLUTION DRAWING

• (1) Click the menu "View / Video Output...".
• (a) INTERNAL OPENGL ENVIRONMENT
• (2-1) Check "Use OpenGL".
• (2-2) Check "Draw with OpenGL".
• (b) EXTERNAL PLUG-IN ENVIRONMENT
• (2-1) Uncheck "Use OpenGL".
• (2-2) Check "Use VIDEO.DLL".
• (2-3) Rename your target plug-in file(ex. "gpuPeteD3D.dll") to "VIDEO.DLL" and move it to XEBRA's folder.
• (2-4) Click "Config", and setup.
• (3) The internal OpenGL environment conflicts with the external plug-in environment. If you change the drawing environment, you should restart XEBRA.
